034Motorsport Transmission Mount Insert, B9/B9.5 Audi A4/S4, A5/S5/RS5, Q5/SQ5, Allroad, C8 RS6/RS7, 4M.5 SQ7/SQ8, & D5 A8/S8, Billet Aluminum

Description

034Motorsport is proud to offer our Billet Aluminum Transmission Mount Insert for theB9/B9.5 Audi A4/S4, A5/S5/RS5, Q5/SQ5, Allroad, C8 RS6/RS7, 4M.5 SQ7/SQ8, & D5 A8/S8! The factory Audi transmission mount has a large void in the rubber damping medium, which results in excessive transmission movement under load. This movement results in drivetrain slop than can be observed when accelerating, decelerating, and shifting.

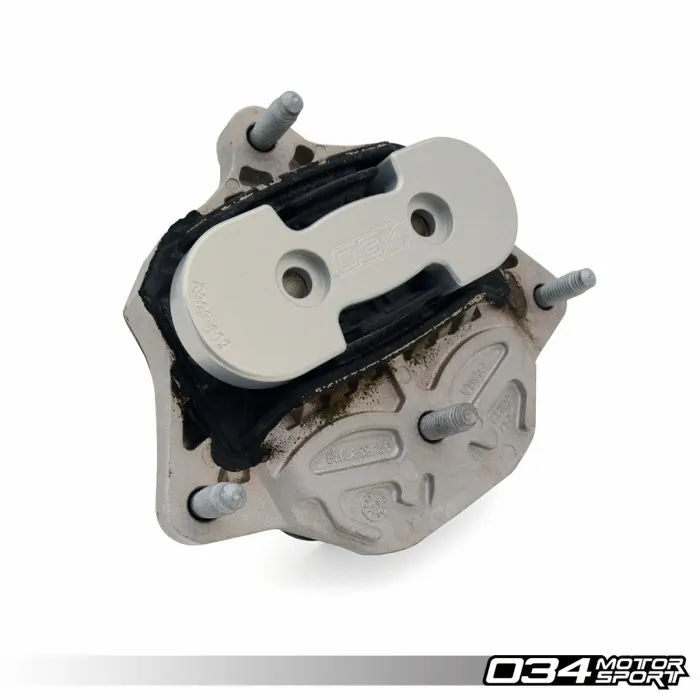

This billet aluminum insert is designed to fill the large void in the factory transmission mount, and limit transmission movement without sacrificing ride quality or introducing any additional noise, vibration, or harshness into the cabin. By filling the void in the factory mount, this insert eliminates the associated slop and ensures that you experience crisper shifts and a smoother driving experience.

This mount was thoroughly tested on 034Motorsport’s in-house B9 Audi A4 Development Vehicle, and independent Audi enthusiasts before release. Installation is very simple, can be performed in minutes, and is completely reversible.

Installation Hardware:

The OE bolts used to secure the Transmission Mount Insert are one-time use torque to yield (TTY) bolts per VW/Audi. This means that as these bolts are tightened, they stretch slightly and become permanently elongated. 034Motorsport includes new Grade 12.9 installation hardware, which is stronger than the OE torque to yield bolts and allows for re-use, and Blue Loctite for all customers. This Grade 12.9 hardware should be torqued to 30nm with Blue Loctite applied.

Features:

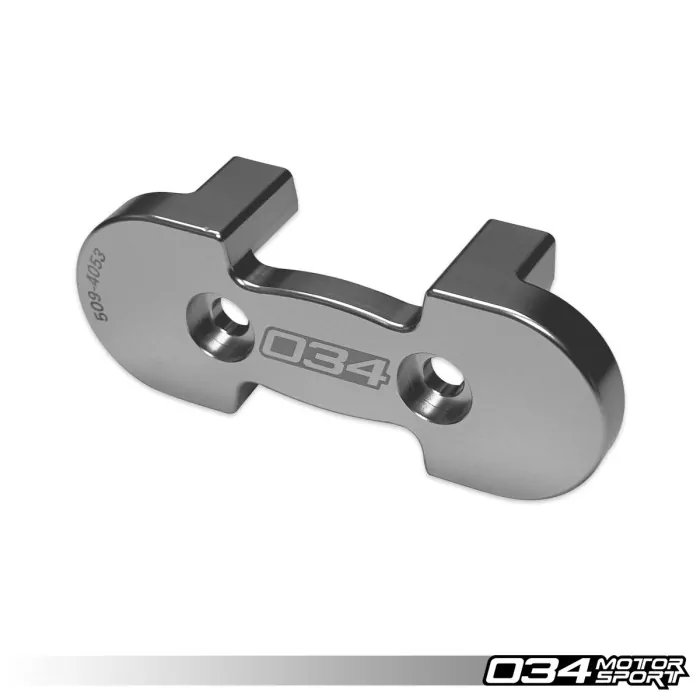

• T6-6061 Billet Aluminum Construction
• CNC-Machined In-House
• Clear Anodized Finish for Durability
• Engineered to Fill Void In Factory Transmission Mount
• Drastically Reduces Transmission Movement During Shifts & Under Decel
• Improves Shifting Feel, Resulting in Crisper Shifts
• Will Not Cause Additional NVH Transfer Inside Cabin
• Easy, Straightforward Installation Takes Minutes!

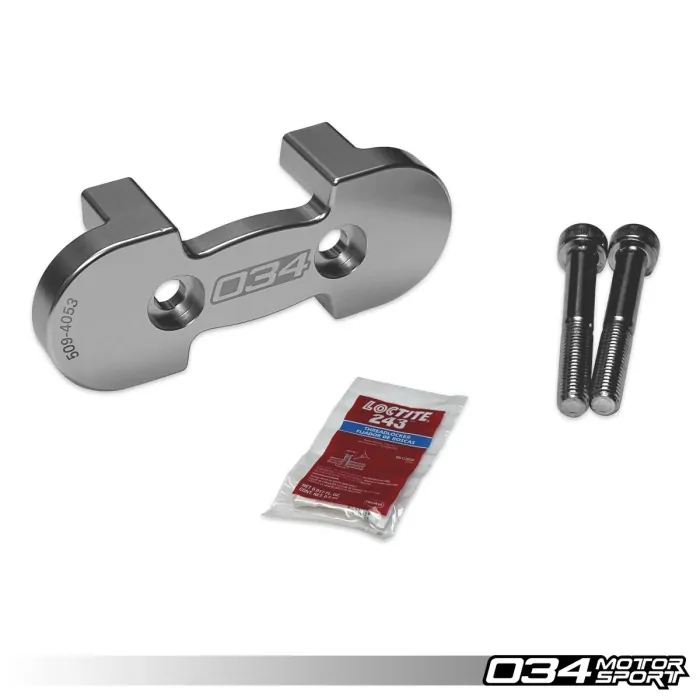

What’s Included:

• 034Motorsport Billet Aluminum Transmission Mount Insert
• Grade 12.9 Installation Hardware
• Blue Loctite

NOTE: Fits 7-Speed S-tronic, 8-Speed Tiptronic, & 6-Speed Manual Transmissions.
